Description
Key Features
- Ideal for challenging terrain and hillsides
- Tough & Robust

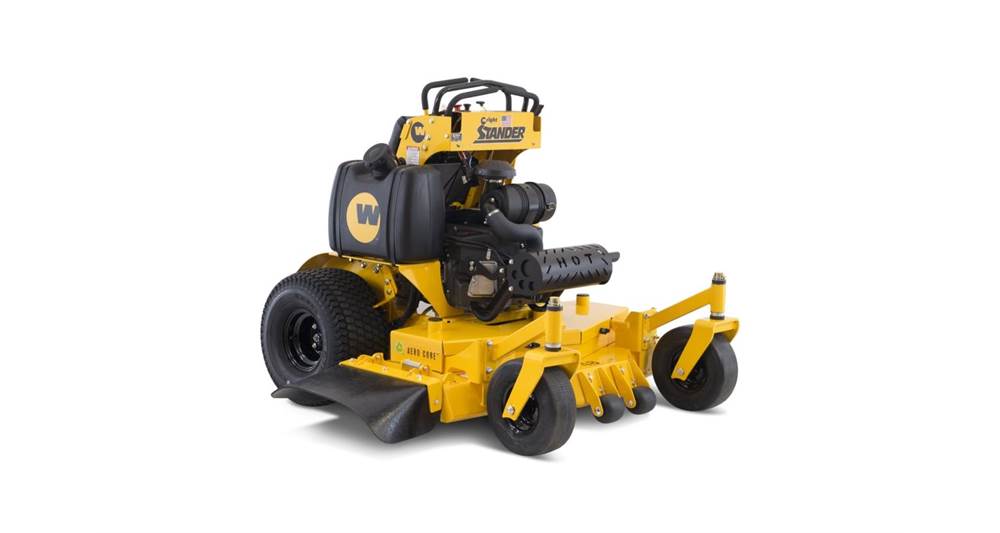

- Tough and nimble, the large frame Stander® excels when needing to navigate challenging terrain or hillsides. The fixed deck design provides the operator with a rigid and robust design when adjustable decks are not required.
Specifications
- Operator Controls: Quad Lever Ball Bearing
- Hour Meter: Digital
- Engine Model: FX730E
- Engine HP: 23.5 hp
- Engine Start Type: Electric
- Max Acres Per Hour: 5.95 Acre/hr.
- Fuel Capacity: 5.5 gal.
- Forward Speed: 9.5 mph
- Reverse Speed: 5.5 mph
- Drive System Type: Hydro
- Drive System Motor: Danfoss 15 cu in
- Drive System Pump: Hydro-Gear 12 cc
- Blade Length: 21 in.
- Blade Qty: 3
- Deck Configuration: Aero Core
- Deck Discharge: Side Discharge
- Deck Lift System: Shims, Fixed Deck
- Deck Size: 61 in.
- Deck Steel Gauge: 7 Gauge
- Deck Spindle: Ductile Iron
- Deck Style: Fixed
- Deck Type: Fixed-side discharge
- Deck Cut Height Max: 5 in.
- Deck Cut Height Min: 1.25 in.
- Length: 62.50 in.
- Width Deflector Down: 74.00 in.
- Width Deflector Up: 62.00 in.
- Weight: 1003 lb.
- Caster Tire Type: Flat Free
- Caster Tire Diameter: 13.00 in.
- Caster Tire Width: 5.00 in.
- Caster Wheel Rim Diameter: 6.00 in.
- Rear Tire Ply: 4 ply
- Rear Rim Diameter: 8.00 in.
- Rear Tire Diameter: 20.00 in.
- Rear Tire Width: 10.00 in.
